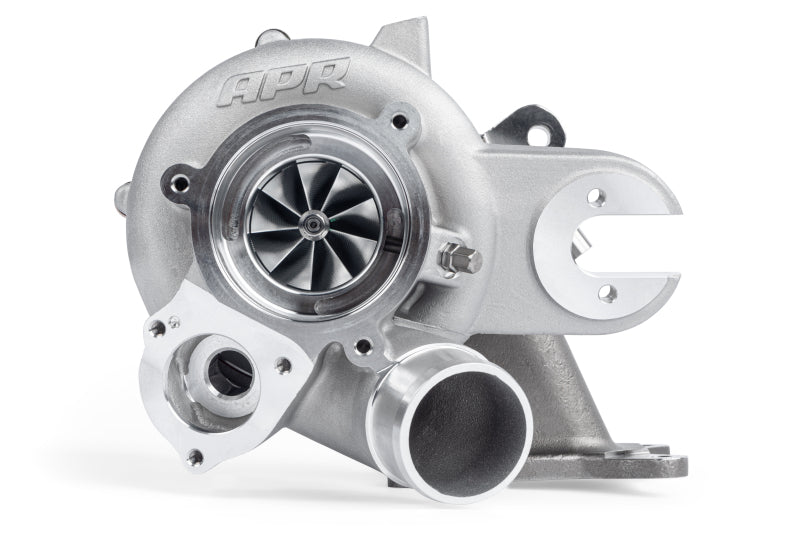

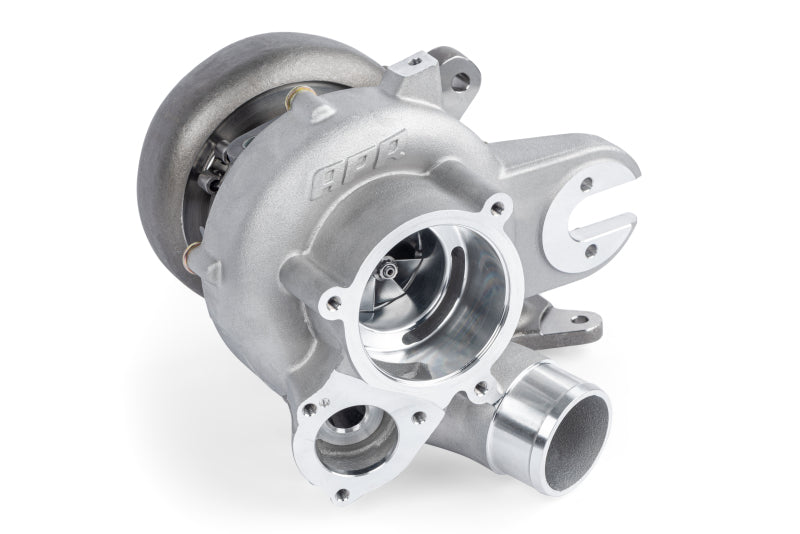

APR DTR6054 Direct Replacement Turbo Charger System (2.0T EA888.3 Trans)

The APR DTR6054 is a direct turbocharger replacement for the EA888 Gen 3 Engine. This upgrade includes matching software for various vehicles and mods, and provides up to 491 HP and 425 FT-LBS of torque, depending on vehicle platform and fueling, all while keeping emissions components unmodified. The software supports premium pump fuel grades, race fuel grades, and even Ethanol on the Golf R, S3 and TT S platform with fueling upgrades! For dedicated race cars the turbocharger is designed with plenty of headroom to go even further on your own!This is a brand new turbo designed and developed by APR from the ground up. It does not require a core, and there's no additional downtime associated with other upgrade styles. The turbo bolts to the factory location and connects to factory or upgraded components.Since this turbo was designed from the ground up, and doesn't use any of the factory or factory cloned housings or internals, we had complete control over the design. We've upgraded the CHRA to feature German dual ceramic ball-bearings for smooth and reliable operation with better transient response. This also does away with the failure-prone journal bearing design on the factory turbochargers. Next the compressor cover was upgraded with an appropriate A/R matched to our larger billet aircraft-grade 6061 aluminum 60mm compressor wheel. We've also included a large turbo inlet pipe that perfectly matches the turbo's anti-surge compressor cover and connects directly to your factory or upgraded intake system. We've completely done away with the turbo muffler assembly providing the turbo with a larger outlet and smoother transition. The compressor cover even includes a port for a turbocharger shaft speed sensor should one suit your build.The turbine side of the turbocharger also benefits from our ground-up design.

Features & Benefits

• Over 30% compressor flow compared to the factory Golf R, S3, and TT S IS38 turbocharger
• Vibration sort rig (VSR) balanced turbocharger center housing rotating assembly (CHRA)
• Plenty of turbocharger headroom for even more power in “race only” configurations
• Various software levels depending on fueling modifications, including stock fueling
• Silicone discharge hose with APR EZ-flow stepped lips included (No turbo muffler)
• Included software produces up to 491 HP depending on platform and configuration
• Fueling kits available for maximum power (Golf R, S3, and TT S platform only)
• Included software remains emissions compliant and uses your factory exhaust
• Machined turbocharger speed sensor port with included billet block off plug
• Connects to your factory components and reuses factory wastegate and DV
• Supports E60-E85 with fueling upgrades (Golf R/S3/TT S platform only)
• Included software designed for use on a factory engine (See notes)
• New DTR6054 direct turbocharger replacement designed by APR
• Aircraft-grade billet 6061 aluminum 60mm compressor wheel
• Perfectly matched compressor cover area over radius (A/R)
• Nickle-based superalloy K418 high-flow 54mm turbine wheel
• Supports 91, 93, 100, and 104 AKI in all configurations
• Incredible value with support and directions included
• High temperature 310 stainless steel turbine housing

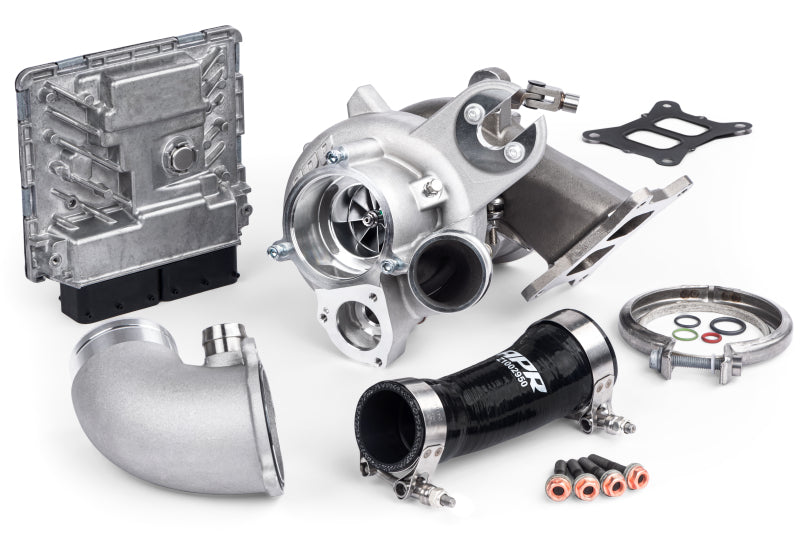

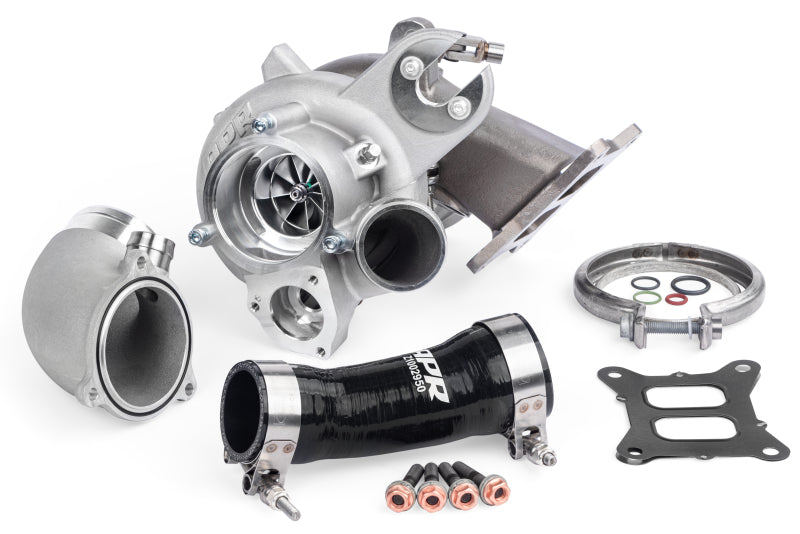

• All necessary hardware, gaskets, and clamps included
• Direct bolt-on to MQB platform EA888 gen 3 engines
• Included software tested at various road courses
• German dual ceramic ball bearing center section
• Integrated diverter valve (DV) port
• Oversized cast turbo inlet pipe
• Perfectly matched turbine A/R
• Excellent transient response
• Anti-surge compressor cover
